Description
ebs bass pedals EBS MicroBass 3 Professional Outboard Bass PreampDUAL CHANNEL, FULLY ANALOG PREAMP BUILT IN COMPRESSOR BUILT IN TUNER QUALITY PIECE OF HIGH END GEAR POWER SUPPLY INCLUDED FREE SHIPPING IN THE USA EXPERT TECHNICAL SUPPORT IN STOCK MEANS IN STOCK DESCRIPTION The EBS MicroBass 3 is a 2 channel preamp, built exclusively with premium components. It is engineered by EBS in Sweden with technologies from the famous HD360 and Fafner II amplifier designs. The preamp operates at a signal level equal to a
DUAL CHANNEL, FULLY ANALOG PREAMP
BUILT IN COMPRESSOR
BUILT IN TUNER
QUALITY PIECE OF HIGH END GEAR
POWER SUPPLY INCLUDED
DESCRIPTION

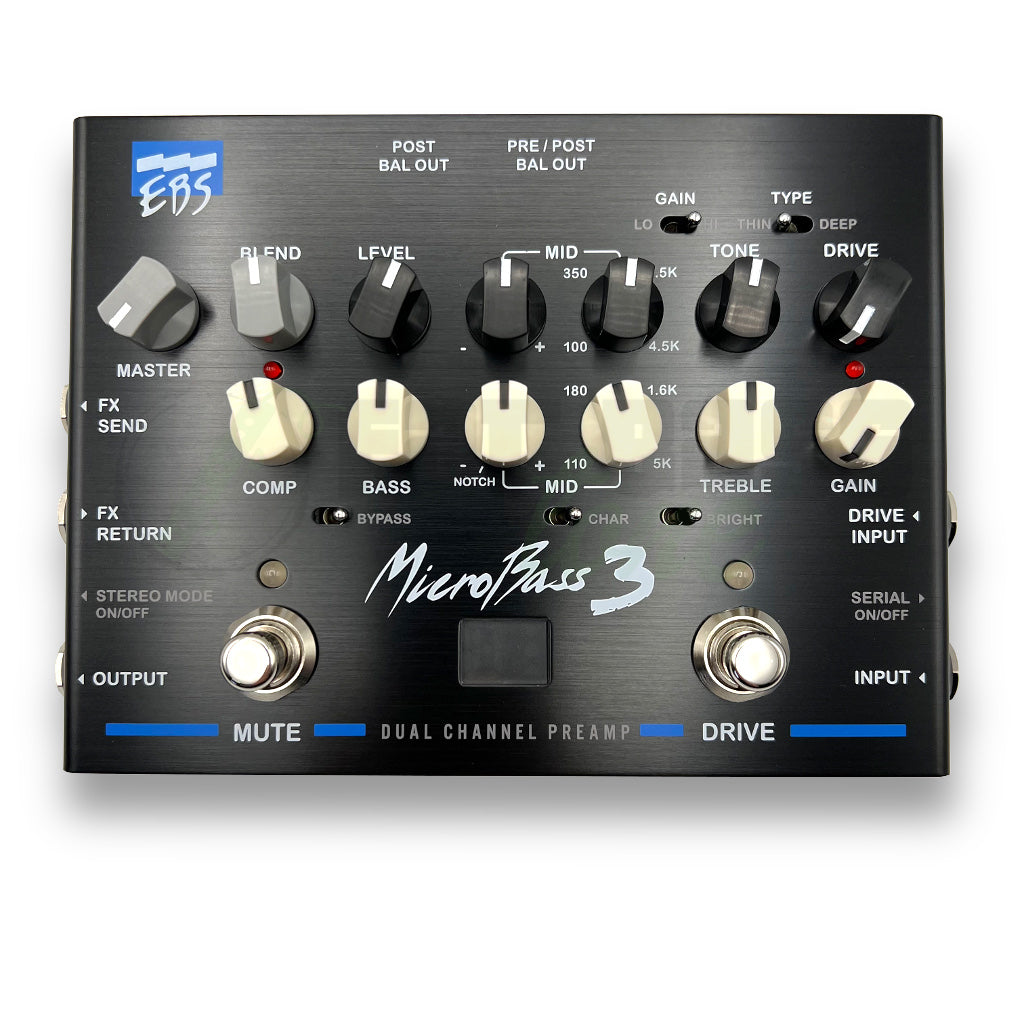

The EBS MicroBass 3 is a 2-channel preamp, built exclusively with premium components. It is engineered by EBS in Sweden with technologies from the famous HD360 and Fafner II amplifier designs.
The preamp operates at a signal level equal to a professional mixing console which gives you plenty of headroom. The high signal level makes it suitable to use as a preamp in combination with any type of power amp.
Run the Clean and Drive channels in series or parallel. Use the dual balanced XLR-outputs to tap the signal post and pre EQ at the same time.
With 10 Mohms input impedance, it handles any type of bass – passive, active, or with piezo pickups.
The built-in tuner makes it easy to tune between songs without the need of an external device. The MicroBass 3 also carries an onboard compressor, similar to the one found on several EBS amplifiers.
The analog EBS MicroBass 3 ensures your sound – every time.
**Sorry international bassists, but US Dealers are not authorized to ship EBS pedals outside of the US. Please contact us if you are having trouble finding EBS products in your home country.
FEATURES
- 100% analog professional preamp.
- Dual channels – Clean and Drive.
- Run in parallel or series.
- Blend control for the drive.
- Dual Balanced XLR-out (pre & post EQ or Stereo).
- Effects loop (mono or stereo).
- Character and Bright filters (clean channel).
- HI or LO gain drive engines.
- Thin or Deep type (drive channel).
- Tuner, Aux-input, Headphones out.
- 10 Mohms input impedance (main input).
- 9V DC, 450 mA required (power supply included).
TECH & SPECS
Dimensions:
6.6" [168mm] Wide
4.9" [124mm] Deep
2.1' [53mm] High
Weight: 1.5 lbs. [660 g]
Clean Channel:
Input Impedance:
- Parallel mode 1.5 Mohms // 44 pF
- Serial mode 10 Mohms // 22 pF
Gain:
- Gain Range min/max -oo/ +30 dB
- Gain Peak LED +10 dBv
- Frequency Response +0 / -3 dB 20 - 20.000 Hz
Character:
- Filter Type Shelving High/Low Pass
- Gain: Lo +6 dB @ 80 Hz
- Mid -2 dB @ 900 Hz
- Hi +3 dB @ 7.5 kHz
Bright:
- Filter Type Shelving. Gain: +10 dB @ 10 kHz
Filter Section:
- Bass Filter: Type 12 dB/oct. Shelving. Gain Range +/- 18 dB @ 60 Hz
- Middle Filter: Type Bandpass Filter. Freq Range 50 - 5.000 Hz. Q - Boost 0.5 - 1.3, Q - Cut 0.5 - >5. Gain Range +/- 12-15 dB
- Treble Filter: Type Shelving. Gain Range +/- 18 dB @ 8 kHz
Comp/Limit
- Comp Gain 0 dB
- Attenuation max 24 dB
- Compression Ratio max 3:1
- Attack (80%) typ <10 ms
- Release (80%) typ 100 ms
Drive Channel:
Input: Input Impedance 1.8 Mohms // 22 pF
Drive: Gain Range 40 dB
Engines:
- Lo: Type 2nd harmonics soft
- Hi: Type Symmetrical 2-stage with +18 dB gain
Type: Thin/Normal/Deep Pre Drive EQ
Filter Section:
- Tone Filter: Type 6 dB/oct. Low Pass. Frequency Range 700 - 20k Hz
- Middle Filter: Type Bandpass Filter. Frequency Range 100 - 4.500 Hz. Q 1.2, Gain Range +/- 15 dB
Effects Loop:
Loop Signal Level nominal -10 dBv
Gain Unity (1:1)
Output Impedance <100 ohms
Input Impedance >200 kohms // 22 pF
Phones Out:
Recommended Impedance 32 - 200 ohms
Aux Input:
Input Impedance 20 kohms>
Nominal Level -10 dBv
Recommended Impedance 32 - 200 ohms
Output:
Output Impedance <1 kohms
Signal Level nominal 0 dBv
Balanced Outputs:
Output Level nominal -20dBv
XLR Connections 1-GND, 2-Hot, 3-Cold
Options Pre/Post EQ, L/R Ch. in stereo mode
Auxiliary Info:
Power Requirements Idle 450mA @9V. Max 750mA @9V (with headphones at max output level)
